The big idea
Robotic boots providing superhuman reflexes can help your balance. A new study shows that the key to augmenting balance is to have boots that can act faster than human reaction times.
When people slip or trip, their reactions to regain balance are far slower than some machines can act. For humans, and other animals with legs, it takes time for biological sensors to send signals to the nervous system and then turn on muscles. Robots can act much faster, using wires instead of nerves to send their signals.
But robots are still notoriously bad at balancing, because they can’t yet mimic how humans respond when their balance is challenged. The biomechanical engineers and rehabilitation physiology researchers behind this study look at the neurophysiology of movement. In the study, they sought to answer the question of whether wearable robots – like powered lower-limb exoskeletons or prostheses – can improve balance above and beyond a normal baseline.

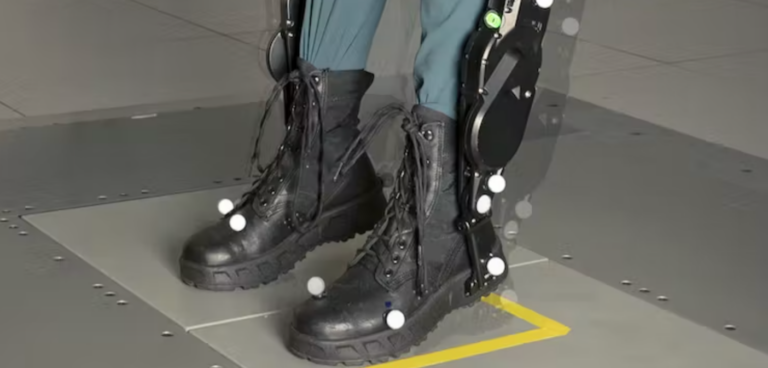

They used a motorised floor to literally “pull the rug out” from under healthy young participants – pitching them forward toward the ground. They asked them to stay balanced with their feet in place, but sometimes the slip was so large that they had to take a step to avoid face-planting on the ground. Then, they programmed the exo-boots to give the participants a blast of assistance with either the same delay as their natural response or artificially faster than humanly possible and compared that to giving no exo-boot assistance at all.
The research team were surprised to find that only the mode that beats the human reaction to the punch helped users recover balance faster and prevented them from taking a step to recover.
At the same time, they recorded physiological responses of the exo-boot “test pilots” to see whether the device was mimicking – or potentially interfering with – their underlying balance responses. Using ultrasound, they could look under the skin to see how calf muscles stretched during the slip. Muscle stretch generates critical sensory signals needed by the nervous system to initiate a balance reaction.
The faster-than-human exo-boot balance response actually eliminated calf muscle stretch signals, but the control signals to those same muscles, in response to the nervous system generally, persisted. This finding highlights that the nervous system is more than a set of simple reflexes that react to local muscle stretch but instead acts to gather information from throughout the body to remain upright in both standing and walking.
Why it matters
People tend to take balance for granted. But every step holds the possibility of a fall, and bad falls are a top reason for health declines when people grow older. If researchers can develop assistive technology to improve balance while getting from here to there, it can prevent falls and enable people to be active for longer.
What other related research is going on in the field
Using wearable robots to help mobility, particularly balance, has long been a dream of scientists and engineers. But research to date has focused primarily on providing powered assistance to make it easier to walk faster or longer. Aside from a handful of promising laboratory-based research devices, the field of wearable robots has not focused much on balance.
Technology advances in the past decade open up new possibilities for state-of-the-art wearable robots to improve balance. Other researchers around the world are also adapting existing exoskeleton systems to assist balance using biologically inspired control algorithms that may, in time, be able to respond faster than a human’s reflex response.
This study is a proof-of-concept demonstration that exoskeletons can improve balance in a controlled laboratory setting during a simple upright standing task for young adults without balance problems. There is much to be done to enable wearable robots to help with balance in everyday life and improve life for people with balance impairments like older adults, or people with stroke or spinal cord injury. Future studies will be required to explore using exoskeletons at other lower-limb joints, like the knee and hip, to develop artificial intelligence that can anticipate the risk of falling and enable personalised superhuman balance.
This article was authored by Lena Ting, professor of biomedical engineering and rehabilitation medicine, Emory University; Gregory S. Sawicki, associate professor of mechanical engineering and biological sciences, Georgia Institute of Technology; Max Shepherd, assistant professor of mechanical and industrial engineering and physical therapy and rehabilitation, Northeastern University, and Owen Beck, assistant professor of kinesiology and health education, The University of Texas at Austin. It was republished from The Conversation under a Creative Commons license. Read the original article.
